Take your simulation
to the next level
​​
​
Combined with VR equipment, our simulators deliver an unparalleled sensory experience, that blurs the line between reality and virtual simulation.
Whether you're navigating the virtual skies, speeding through digital landscapes, or exploring alternate realities, E-Motion is your partner in turning dreams into dynamic, tangible experiences.
​​
Perfect for professional training, entertainment, or research, these platforms provide unmatched immersion by allowing full movement across all axes, and offer a truly immersive experience.​​​​​​
​​​E-Motion, based in Dubai, is at the forefront of revolutionizing simulation technology.
Innovators in Simulation

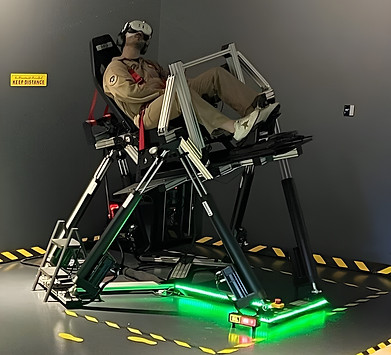

Understanding 6-DOF simulators
Physically, a 6-DOF simulator typically consists of a motion platform mounted on actuators, that precisely control the platform’s position and orientation. Sophisticated software interfaces with the actuators to interpret user inputs or pre-programmed scenarios, creating lifelike forces and movements.
This range of motion closely mimics the freedom experienced by vehicles in real-world environments.
​6-DOF stands for “six degrees of freedom,” referencing a system’s ability to move in three-dimensional space along six distinct axes:
​
-
Surge: Movement along the X-axis (forward and backward)
-
Sway: Movement along the Y-axis (left and right)
-
Heave: Movement along the Z-axis (up and down)
-
Pitch: Rotation around the Y-axis (tilting forward and backward)
-
Roll: Rotation around the X-axis (tilting side to side)
-
Yaw: Rotation around the Z-axis (turning left and right)
​
This range of motion closely mimics the freedom experienced by vehicles in real-world environments.
Modularity
​One of the key strengths of our platforms is their modularity : our dynamic motion simulators aren't confined to a single experience. Switch effortlessly between different modes :
Flight mode
Race mode
VR or Screen
With interchangeable hardware and adaptable software, users can convert the simulator from flight mode to race mode in a matter of minutes.
For example, the flight controls can be swapped for a racing wheel and pedals, and the simulation software switched to a motorsport program.​
​This rapid reconfiguration maximizes the utility of the simulator, ensuring that a single platform can support a wide range of applications. This efficiency is particularly valuable for organizations, such as training centers or entertainment venues, that require versatility and cost-effectiveness.
Flight mode transforms the 6-DOF simulator into a cockpit environment, replicating the sensations of flying an aircraft
​
-
Realistic Cockpit Emulation: The simulator can be fitted with flight controls—such as yokes, joysticks, rudder pedals, and throttle quadrants—to mirror real aircraft operations.
-
Wide Range of Aircraft: Users can simulate anything from light single-engine planes to commercial airliners or military jets.
-
True-to-Life Motion Cues: The 6-DOF platform accurately recreates turbulence, banking, takeoff and landing forces, and other dynamic flight conditions.
-
Advanced Visuals and Sound: High-resolution displays and surround sound systems enhance immersion, rendering clouds, landscapes, and aviation environments in stunning detail.
FLIGHT MODE
Taking to the skies
Switching to race mode, the 6-DOF simulator morphs into the driver’s seat of a race car or supercar.
Users feel every twist, turn, and acceleration as if on an actual racetrack.
​
-
Authentic Driving Controls: Racing wheels, pedals, gear shifters, and handbrakes can be integrated to replicate the controls of real racing vehicles.
-
Dynamic Track Feedback: The simulator’s motion platform conveys road textures, G-forces during acceleration and braking, and the subtle vibrations of driving at high speed.
-
Customizable Vehicles: Users can select from a variety of racecars—Formula 1, GT, rally, or street cars—and adjust settings to suit their preferences.
-
Immersive Environments: Panoramic displays or VR headsets put users at the center of world-famous tracks, from Monaco to Nürburgring.
RACE MODE
the need for speed
Specifications
General
Payload
300 kg
Power
600 W (1kW peaks)
Heave
±500mm, 833mm/s
Surge
±500mm, 833mm/s
Sway
±450mm, 833mm/s
Weight
180 / 360 kg (anchored / mobile version)
Voltage
230V (110V optional)
Roll
±32°, 150°/s
Yaw
±40°, 150°/s
Pitch
+35° / -32°, 150°/s
Dimensions
Footprint (LxW)
1900 x 2160 mm
Min. required height
2230 mm
Compatibility
Servo controllers
Motion4Sim
Games
All games supported by Flypt Mover, including: Assetto Corsa, Assetto Corsa Competizione, DCS World, DiRT Rally 2, Truck Simulator 2 and American Truck Simulator, F1 2020, Flight Simulator 2020, iRacing, Automobilista 2
Software
FlyPT Mover, Motion4Sim
Peripherals
By customising the framework you can mount almost all known peripherals (not included).
Requirements
Peripherals
To use the simulator you would need to add your own peripherals, for example: joysticks, wheel bases and pedals. Peripherals are not included.
Display(s)
The simulator requires a display device which could be a head mounted display (VR) or monitor. An extra monitor beside the simulator is recommended to make configurations. Displays are not included.
PC
For the simulator you need a Windows 10 or 11 PC which is capable of driving your entire setup. A PC is not included.
Dimensions and Footprint
Prices
Personalized solutions to meet every need.
At E-Motion, we understand that every client has unique requirements. Whether you are an individual seeking a cutting-edge simulation experience, or an institution looking to equip your organization with the latest technology, our simulator pricing is tailored specifically to your needs.
​
From consultation to installation and ongoing support, our team is committed to delivering a seamless and rewarding experience. We listen to your requirements and propose you the best options.
​
-
For Individuals
-
For Professionals or Institutions
